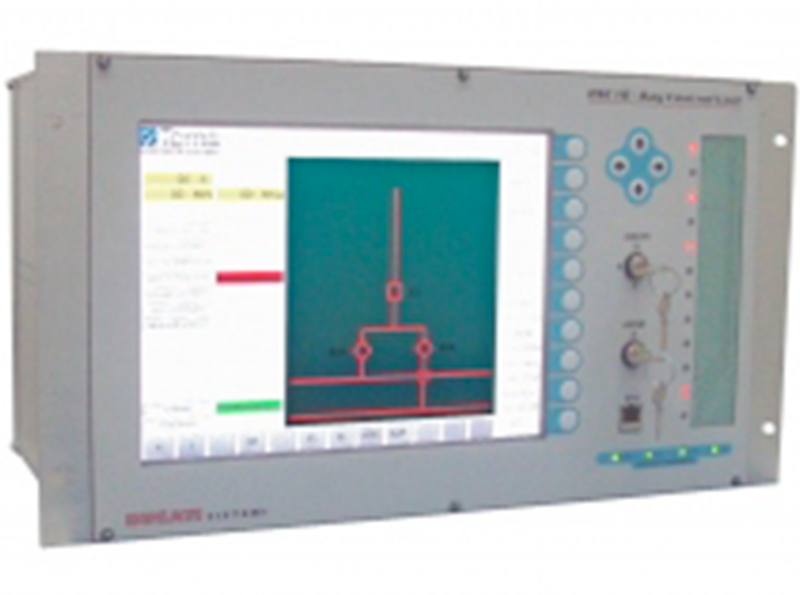

DSC10 is the latest generation of modular station computer, designed to be used as a Bay Control Unit (BCU) in control applications for medium, high and very high voltage plants.
Main sectors in which products are used
Electricity distribution
Smart grid automation
Industry
Functions performed
In addition to traditional I/O signal management, the DSC10 features numerous integrated, fully configurable functions and a wide range of communication options that make it an optimal and low-cost solution even as an RTU or control device for real-time automation systems. A powerful CPU card (with a 1.6 GHz Intel ATOM processor) with plenty of memory (512 Mbyte of RAM and 512 Mbyte of solid-state disk) make applications versatile and fast. A large LCD display with program-adjustable backlighting, a convenient keyboard with 10 functional keys plus 4 direction keys and 12 software-configurable LEDs make local operation easy. The DSC10 has a wide range of software: dedicated SCADA for display management (graphic synoptics, data presentation, menu management, RCE, etc.); integrated SoftPLC for defining custom logic in all languages provided for by the IEC 61131 standard; direct interaction between SCADA and SoftPLC for data and command exchange; serial and Ethernet communication protocols (IEC 61850 with reporting and GOOSE, IEC 60870, MODBUS, etc.).
